MÁY PHÂN TÍCH QUANG PHỔ CDM- 01 (ASA-CDM 01)
| THÔNG SỐ KỸ THUẬT | |
| Resolution | 0.8-1.5nm FWHM |
| Wavelength Range | 300-1100 nm - 380-780 nm |
| Demensions | 73X85X30 mm |
| USB connector | Yes |
| Weight | 292 grams |
Mô tả chi tiết

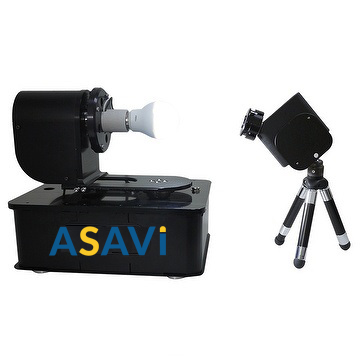

Goniophotometer :
20cm- spatial photometric distribution
Luminous intensity distribution
Total luminous flux
Lux, CCT, color, CRI etc, in a 3-dimension graph display
Lux, CCT, color, CRI, testing point etc, in graph display
Cartesian Coordinates System
Display of illuminance at a distance comparison
Conter illuminance
Hue determination and the relationship between DUV and angle of view
IES files and SDK available
Max hue determination and the position
Average color coordinates (Xa, Ya)
Beam angle
CIE Glare Index (CGI)
Product specification :
|
|
CDM- 01
|
CDM- 02
|
|
Resolution
Wavetength Range
Signal-to-noise Range
Spectral deviation
Integration Time
Input Fiber Connector
Interface
Power
Dimensions
Weight
PC Operating System
|
0.8-1.5 nm FWHM
300-1100 nm 380-780 nm
< 0.1%
0.04%
1 ms-24 s
SMA905
USB, GPIO
Dafault USB Power
73(W)x85(D)x30(H) mm
292 grams
Windows XP/Windows7/Vista
|
4,2-5 nm FWHM
380-780 nm
<0.3%
0.12%
1 ms-24 s
SMA905
USB, GPIO
Dafault USB Power
75(W)x51(D)x20(H) mm
292 grams
Windows XP/Windows7/Vista
|
